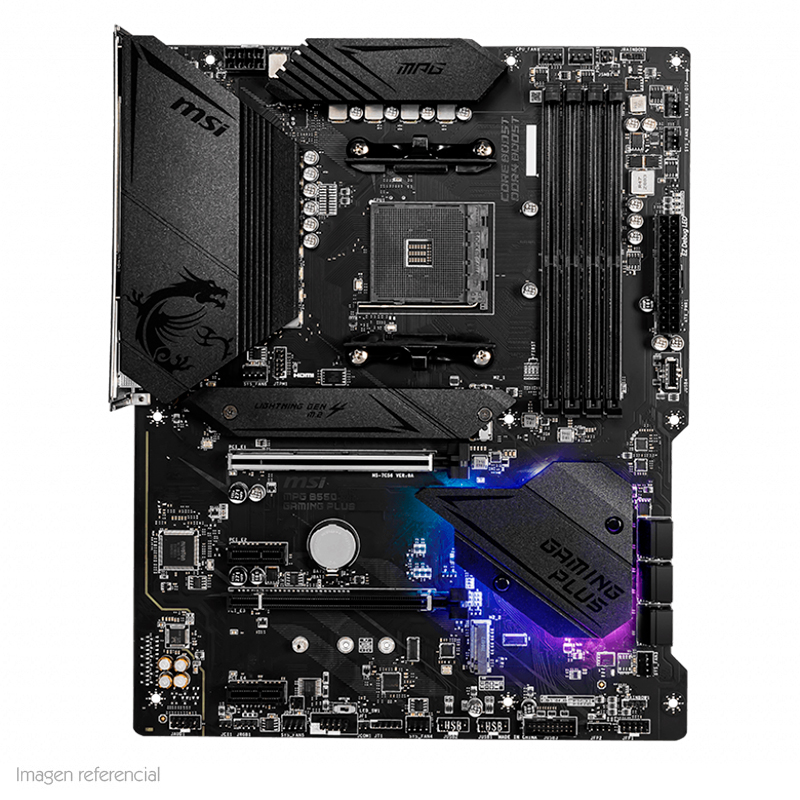

Motherboard MSI MPG B550 GAMING PLUS AMD B550 AM4 Socket, HDMI, DP, USB 3.2 Gen 2
Soporta procesadores de la serie AMD Ryzen 5000 & 3000 (no compatible con AMD Ryzen 5 3400G / Ryzen 3 3200G), AMD Ryzen 4000 G-Series, 4 ranuras DDR4 3200 / 3066 / 3000 / 2800 / 2666 / 2400 / 2133 / 1866 MHz, Almacenamiento 2 x M.2 slot / 6 x SATA 6Gb/s, Audio Realtek ALC892/ALC897 Codec, 1x Realtek 8111H Gigabit LAN, formato ATX.
| MARCA | MSI |
| MODELO | MPG B550 GAMING PLUS |
| CHIPSET | AMD B550 |
| TIPO DE SOCKET | AM4 AMD |
| AMD COMPATIBLE | Procesador AMD Ryzen 9 SAM4 5XXXProcesador AMD Ryzen 7 SAM4 5XXXProcesador AMD Ryzen 5 SAM4 5XXXProcesador AMD Ryzen 5 SAM4 4XXXProcesador AMD Ryzen 5 SAM4 3XXXProcesador AMD Ryzen 3 SAM4 3XXX |
| NOTA | Incompatible con AMD Ryzen 5 3400G y Ryzen 3 3200G |
| COMPATIBLES | Memoria RAM DDR4 4000 MHz PC4-32000Memoria RAM DDR4 3600 MHz PC4-28800Memoria RAM DDR4 3200 MHz PC4-25600Memoria RAM DDR4 3000 MHz PC4-24000Memoria RAM DDR4 2666 MHz PC4-21300 |
| NUMERO DE SOCKETS DIMM | 4 |
| EXPANSION MAXIMA EN GB | 128 |
| TECNOLOGIA | Dual Channel |
| TIPO DE RAM | DDR4 |
| VIDEO | Revisar caracteristicas del Procesador |
| TECNOLOGIA | High Definition (HD) |
| CHIPSET | Realtek ALC892/ALC897 Codec |
| CANALES | 7.1 |
| ETHERNET | CHIPSET Realtek RTL8111H |
| VELOCIDAD | 10 Mbps100 Mbps1000 Mbps |
| NUMERO DE PUERTOS | 6 |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s |
| RAID SATA | RAID 10RAID 1RAID 0 |
| NUMERO TOTAL DE SLOTS M.2 KEY M | 2 |
| M.2 CONECTADO AL PROCESADOR | 1 PCIe 4.0 x4 y SATA, tipos 2242/2260/2280/22110 |
| M.2 CONECTADO AL CHIPSET | 1 PCIe 3.0 x4, tipos 2242/2260/2280 |
| RAID PCIE O NVME | RAID 1RAID 0 |
| CONECTADO AL PROCESADOR | 1 PCI Express x16 slot, PCIe 4.0 modo x16 |
| CONECTADO AL CHIPSET | 2 PCI Express x1 slot, PCIe 3.01 PCI Express x16 slot, PCIe 3.0 modo x4 |
| FRONT PANEL AUDIO HEADER | 1 |
| USB 3.2 GEN 1 HEADER | 2 |
| USB 2.0 HEADER | 4 |
| USB 3.2 GEN 1 TIPO-C HEADER | 1 |
| USB 3.2 GEN 2 TIPO-C | 1 |
| USB 3.2 GEN 2 TIPO-A | 1 |
| USB 3.2 GEN 1 TIPO-A | 2 |
| USB 2.0 TIPO-A | 4 |

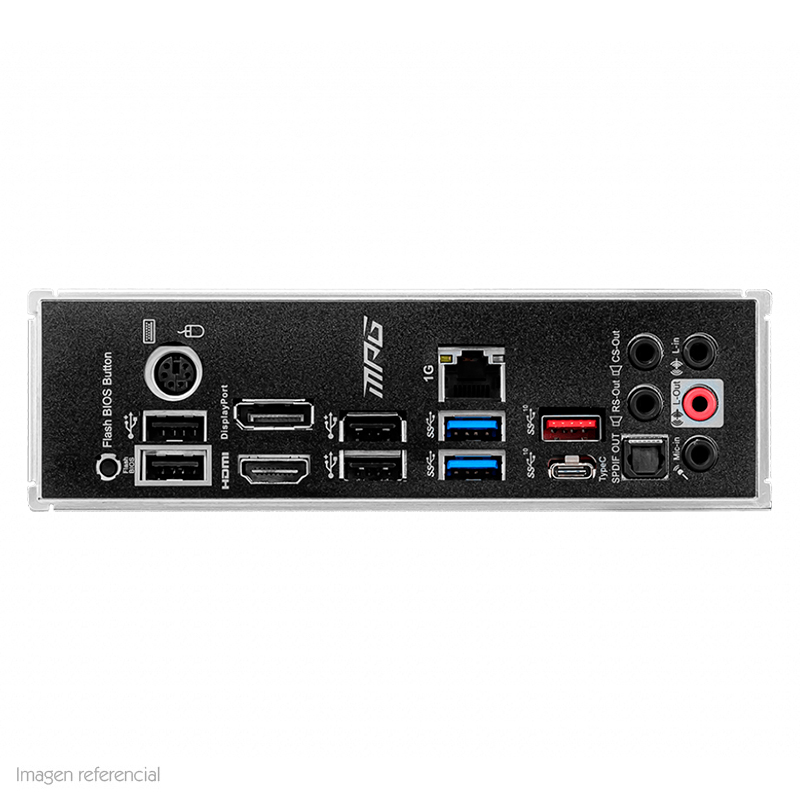

| HDMI | 1 |
| DISPLAYPORT | 1 |
| RJ-45 | 1 |
| AUDIO JACKS | 5 |
| OPTICAL S/PDIF OUT | 1 |
| PS/2 COMBO | 1 |
| FLASH BIOS BUTTON | 1 |
| BIOS | AMI BIOS UEFI |
| FACTOR DE FORMA | ATX |
| DIMENSIONES | 30.5cm x 24.4cm |
| PRESENTACION | CAJA |
| 1 x 24-pin ATX Main Power | 1 |
| 1 x 8-pin ATX 12V power | 1 |
