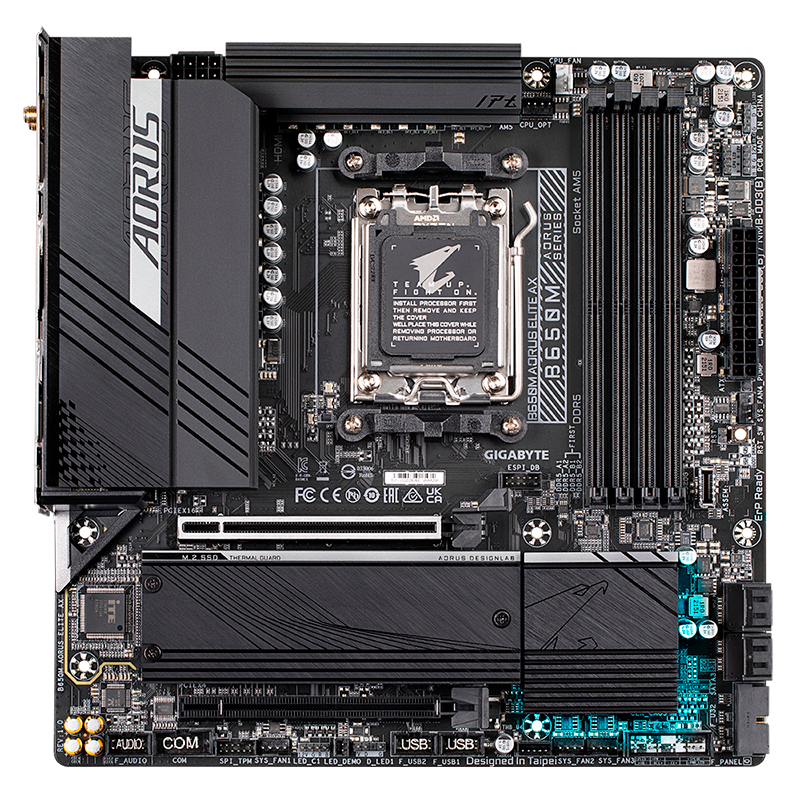

Soporta Procesadores AMD Ryzen 7000 Series, 4 x ranuras de memoria DDR5 / maximo de 128 GB, Almacenamiento 2 x M.2 Key-M slots / 4 x SATA 6Gb/s, Sonido Realtek Audio CODEC / Audio HD, 1 x Realtek 2.5 Gbps Ethernet (RJ-45), WLAN AMD Wi-Fi 6E RZ616 (MT7922A22M) / 802.11a/b/g/n/ac/ax / 2.4/5/6 GHz / Bluetooth 5.2, Formato mATX.
| MARCA | GIGABYTE | ||
| MODELO | B650M AORUS ELITE AX | ||
| REVISION | 1.0 | ||
| CHIPSET | AMD B650 | ||
| TIPO DE SOCKET | AM5 AMD | ||
| PROCESADORES | AMD COMPATIBLE | Procesador AMD Ryzen 9 SAM5 7XXXProcesador AMD Ryzen 7 SAM5 7XXXProcesador AMD Ryzen 5 SAM5 7XXX | |
| MEMORIAS RAM | COMPATIBLES | Memoria RAM DDR5 6000 MHz PC5-48000Memoria RAM DDR5 5600 MHz PC5-44800Memoria RAM DDR5 5200 MHz PC5-41600Memoria RAM DDR5 4800 MHz PC5-38400 | |
| NUMERO DE SOCKETS DIMM | 4 | ||
| EXPANSION MAXIMA EN GB | 128 | ||
| TECNOLOGIA | AMD EXPOIntel XMPDual Channel | ||
| TIPO DE RAM | DDR5 | ||
| VIDEO | Revisar caracteristicas del Procesador | ||
| SONIDO | TECNOLOGIA | High Definition (HD) | |
| CHIPSET | Realtek Audio Codec | ||
| CANALES | 7.1 | ||
| VELOCIDAD | 100 Mbps1000 Mbps2500 Mbps | ||
| WIRELESS | CHIPSET | AMD Wi-Fi 6E RZ616 | |
| PROTOCOLOS | 802.11ax802.11ac802.11n802.11g802.11b802.11a | ||
| BANDAS DE FRECUENCIA | 6 GHz5 GHz2.4 GHz | ||
| BLUETOOTH VERSION | 5.2 | ||
| ALMACENAMIENTO SERIAL ATA | NUMERO DE PUERTOS | 4 | |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s | ||
| RAID SATA | RAID 10RAID 1RAID 0 | ||
| ALMACENAMIENTO M.2 | NUMERO TOTAL DE SLOTS M.2 KEY M | 2 | |
| DISTRIBUCION DE SLOTS M.2 KEY M | M.2 CONECTADO AL PROCESADOR | 1 PCIe 5.0 x4, tipos 2280/251101 PCIe 4.0 x4, tipos 2280/22110 | |
| RAID PCIE O NVME | RAID 10RAID 1RAID 0 | ||
| SLOTS DE EXPANSION | CONECTADO AL PROCESADOR | 1 PCI Express x16 slot, PCIe 4.0 modo x16 | |
| CONECTADO AL CHIPSET | 1 PCI Express x16 slot, PCIe 4.0 modo x4 | ||
| PUERTOS INTERNOS | FRONT PANEL AUDIO HEADER | 1 | |
| USB 3.2 GEN 2X2 TIPO-C HEADER | 1 | ||
| USB 3.2 GEN 1 HEADER | 2 | ||
| USB 2.0 / 1.1 HEADER | 4 | ||
| PUERTOS BACK PANEL | USB 3.2 GEN 2 TIPO-C | 1 | |
| USB 3.2 GEN 2 TIPO-A | 2 | ||
| USB 3.2 GEN 1 TIPO-A | 5 | ||
| USB 2.0 / 1.1 TIPO-A | 4 | ||
| HDMI | 1 | ||
| DISPLAYPORT | 1 | ||
| RJ-45 | 1 | ||
| AUDIO JACKS | 2 | ||
| OPTICAL S/PDIF OUT | 1 | ||
| WI-FI / BLUETOOTH ANTENNA | 2 | ||
| Q-FLASH PLUS | 1 | ||
| BIOS | AMI BIOS UEFI | ||
| FACTOR DE FORMA Y DIMENSIONES | FACTOR DE FORMA | Micro-ATX | |
| DIMENSIONES | 24.4cm x 24.4cm | ||
| PRESENTACION | CAJA | ||
| CONECTORES FUENTE POWER | 1 x 24-pin ATX Main Power | 1 | |
| 1 x 8-pin ATX 12V power | 1 | ||
