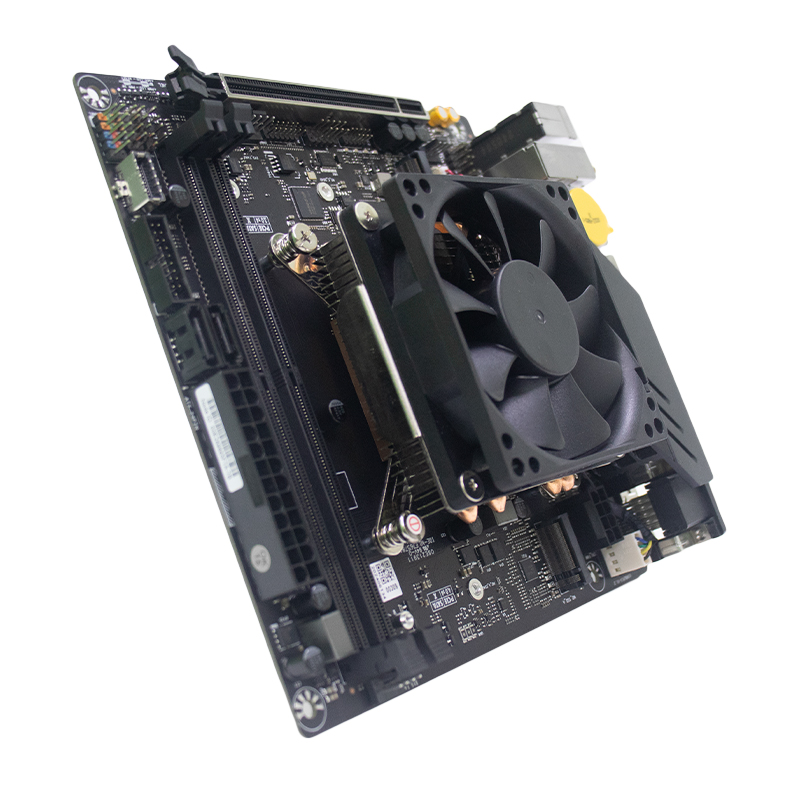

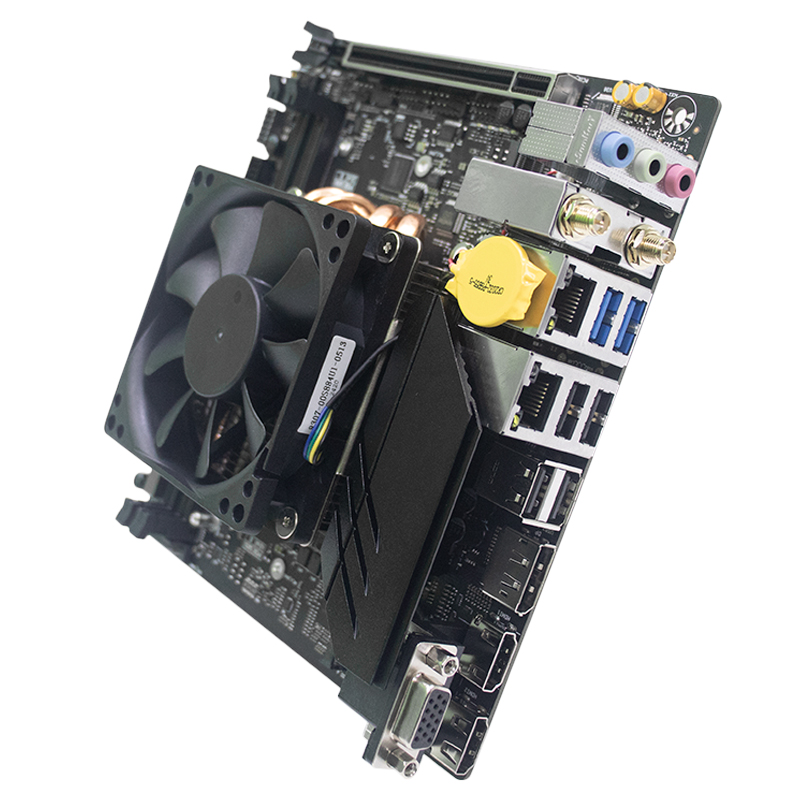

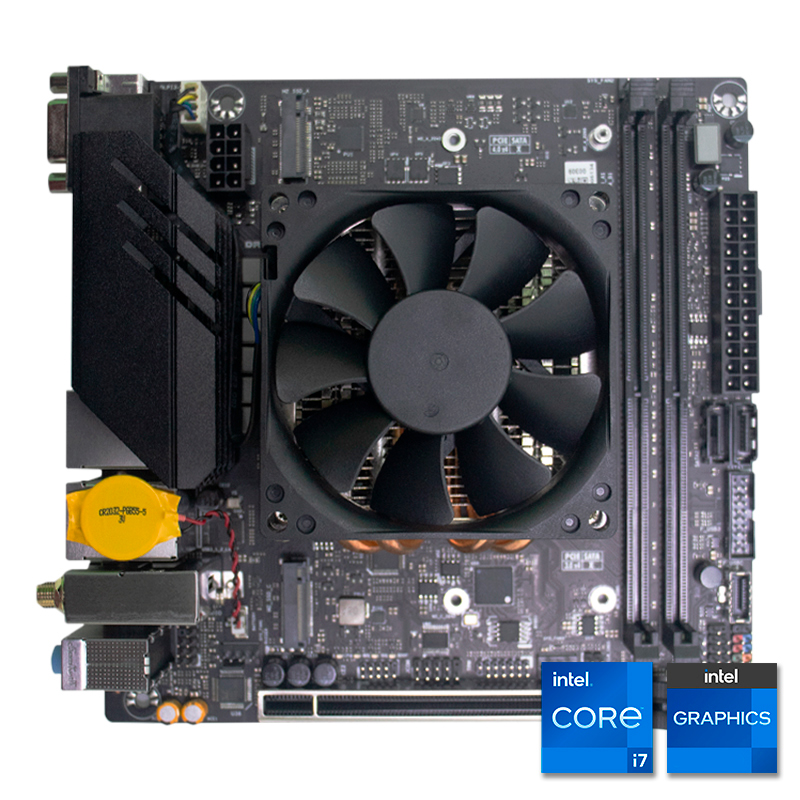

Motherboard ADVANCE MTDK, incorpora procesador Core i7-13620H 2.40/4.90GHz, HDMI(2)/DP/VGA
2 Ranuras de memoria DDR4 / maximo de 64GB, Almacenamiento 3 x M.2 Key-M slots / 2 x SATA 6Gb/s, Sonido Realtek High Definition Audio CODEC, 1 x Realtek 2.5Gb, 1 x Realtek 1 Gb, Formato ITX.
| MODELO | ADV-I7-13620H |
| INCORPORA PROCESADOR | MARCA INTEL |
| FAMILIA | 13a Generacion Core i7 |
| NOMBRE DEL PROCESADOR | Core i7-13620H |
| LITOGRAFIA INTEL | Intel 7 |
| CANTIDAD DE NUCLEOS | 10 |
| CANTIDAD DE PERFORMANCE-CORES | 6 |
| CANTIDAD DE EFFICIENT-CORES | 4 |
| CANTIDAD DE SUBPROCESOS | 16 |
| FRECUENCIA BASE | 2.40 GHz |
| FRECUENCIA TURBO MAXIMA | 4.90 GHz |
| FRECUENCIA TURBO MAXIMA DEL PERFORMANCE-CORE | 4.90 GHz |
| FRECUENCIA TURBO MAXIMA DE EFFICIENT-CORE | 3.60 GHz |
| TECNOLOGIA INTEL TURBO BOOST MAX 3.0 | 4.90 GHz |
| INTEL SMART CACHE | 24 MB |
| POTENCIA BASE | 45 Watt |
| POTENCIA TURBO MAXIMA | 115 Watt |
| INCORPORA CONTROLADOR GRAFICO | SI |
| PROCESADOR GRAFICO | Intel UHD Graphics |
| INCLUYE FAN COOLER | SI |
| COMPATIBLES | Memoria RAM DDR4 4000 MHz PC4-32000Memoria RAM DDR4 3600 MHz PC4-28800Memoria RAM DDR4 3200 MHz PC4-25600Memoria RAM DDR4 3000 MHz PC4-24000Memoria RAM DDR4 2666 MHz PC4-21300 |
| NUMERO DE SOCKETS DIMM | 2 |
| EXPANSION MAXIMA EN GB | 64 |
| TECNOLOGIA | Intel XMPDual Channel |
| TIPO DE RAM | DDR4 |
| TECNOLOGIA | High Definition |
| CHIPSET | Realtek ALC897 Codec |
| ETHERNET | CHIPSET Realtek RTL8125 |
| VELOCIDAD | 10 Mbps100 Mbps1000 Mbps2500 Mbps |
| CHIPSET 2DO ETHERNET | Realtek RTL8111 |
| VELOCIDAD 2DO ETHERNET | 10 Mbps100 Mbps1000 Mbps |
| CHIPSET | Intel Wi-Fi AC 9560 |
| PROTOCOLOS | 802.11ac802.11n802.11g802.11b802.11a |
| BLUETOOTH VERSION | 5.1 |
| NUMERO DE PUERTOS | 2 |
| NUMERO TOTAL DE SLOTS M.2 KEY M | 3 |
| M.2 CONECTADO AL CHIPSET | 3 PCIe 4.0 x4, tipos 2242/2280 |
| CONECTADO AL PROCESADOR | 1 PCI Express x16 slot, PCIe 4.0 modo x8 |
| FRONT PANEL AUDIO HEADER | 1 |
| USB 3.2 GEN 2 TIPO-C HEADER | 1 |
| USB 3.2 GEN 1 HEADER | 2 |
| USB 2.0 HEADER | 2 |
| USB 3.2 GEN 1 TIPO-A | 2 |
| USB 2.0 TIPO-A | 4 |
| VGA | 1 |
| HDMI | 2 |
| DISPLAYPORT | 1 |
| RJ-45 | 2 |
| AUDIO JACKS | 3 |
| WI-FI / BLUETOOTH ANTENNA | 2 |
| BIOS | AMI BIOS UEFI |
| FACTOR DE FORMA | ITX |
| DIMENSIONES | 17.0cm x 17.0cm |
| PRESENTACION | CAJA |
| OBSERVACION | |
|---|---|
| DRIVER | https://mega.nz/file/TMdnCDyY#tDTS-kj85nuEbo9o3_ADo7wzOWq2klBBsq7YkniOsMQ |
| 1 x 24-pin ATX Main Power | 1 |
| 1 x 8-pin ATX 12V power | 1 |
