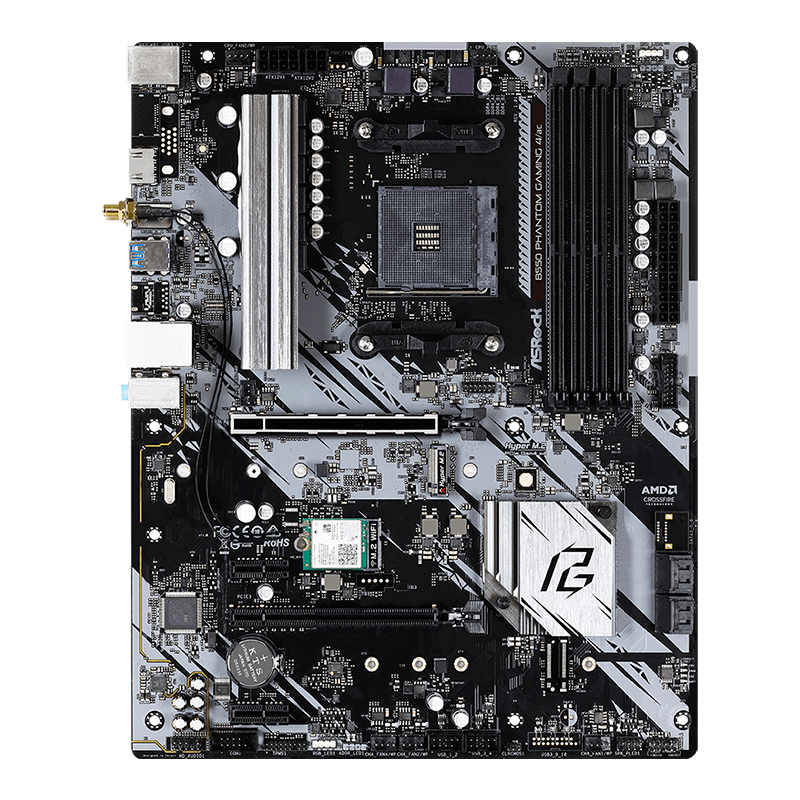

Motherboard ASROCK B550 Phantom Gaming 4/ac, Chipset AMD B550, Socket AMD AM4, ATX
Soporta Procesadores AMD AM4 Ryzen de 3000, 4000 y 5000 Series, 4 x ranuras de memoria DDR4 / maximo de 128GB, Almacenamiento 1 x M.2 Key-M slots / 4 x SATA 6Gb/s, Sonido Realtek / 7.1 Channel, 1 x Realtek RTL8111H (RJ-45), Wifi / Bluetooth, Formato ATX.
| MARCA | ASROCK |
| MODELO | B550 Phantom Gaming 4/ac |
| CHIPSET | AMD B550 |
| TIPO DE SOCKET | AM4 AMD |
| AMD COMPATIBLE | Procesador AMD Ryzen 9 SAM4 5XXXProcesador AMD Ryzen 7 SAM4 5XXXProcesador AMD Ryzen 5 SAM4 5XXXProcesador AMD Ryzen 5 SAM4 4XXXProcesador AMD Ryzen 5 SAM4 3XXXProcesador AMD Ryzen 3 SAM4 3XXX |
| COMPATIBLES | Memoria RAM DDR4 4000 MHz PC4-32000Memoria RAM DDR4 3600 MHz PC4-28800Memoria RAM DDR4 3200 MHz PC4-25600Memoria RAM DDR4 3000 MHz PC4-24000Memoria RAM DDR4 2666 MHz PC4-21300 |
| NUMERO DE SOCKETS DIMM | 4 |
| EXPANSION MAXIMA EN GB | 128 |
| TECNOLOGIA | Intel XMPDual Channel |
| TIPO DE RAM | DDR4 |
| VIDEO | Revisar caracteristicas del Procesador |
| TECNOLOGIA | High Definition (HD) |
| CHIPSET | Realtek ALC1220/ALC1200 Codec |
| CANALES | 7.1 |
| ETHERNET | CHIPSET Realtek RTL8111H |
| VELOCIDAD | 10 Mbps100 Mbps1000 Mbps |
| CHIPSET | Intel 802.11ac |
| PROTOCOLOS | 802.11ac802.11n802.11g802.11b802.11a |
| BANDAS DE FRECUENCIA | 5 GHz2.4 GHz |
| BLUETOOTH VERSION | 4.2 |
| NUMERO DE PUERTOS | 4 |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s |
| RAID SATA | RAID 10RAID 1RAID 0 |
| NUMERO TOTAL DE SLOTS M.2 KEY M | 1 |
| M.2 CONECTADO AL PROCESADOR | 1 PCIe 4.0 x4, tipos 2260/2280/22110 |
| CONECTADO AL PROCESADOR | 2 PCI Express x16 slot, PCIe 3.0 modo x4 |
| NOTA PCIE PROCESADOR | Velocidad varia de acuerdo al modelo de procesador |
| FRONT PANEL AUDIO HEADER | 1 |
| USB 3.2 GEN 1 HEADER | 2 |
| USB 2.0 HEADER | 4 |
| USB 3.2 GEN 1 TIPO-A | 6 |
| HDMI | 1 |
| RJ-45 | 1 |
| AUDIO JACKS | 3 |
| WI-FI / BLUETOOTH ANTENNA | 2 |
| PS/2 COMBO | 1 |
| BIOS | AMI BIOS UEFI |
| FACTOR DE FORMA | ATX |
| DIMENSIONES | 30.5cm x 24.4cm |
| PRESENTACION | CAJA |
| 1 x 24-pin ATX Main Power | 1 |
| 1 x 8-pin ATX 12V power | 1 |
| 1 x 4-pin ATX 12V power | 1 |
