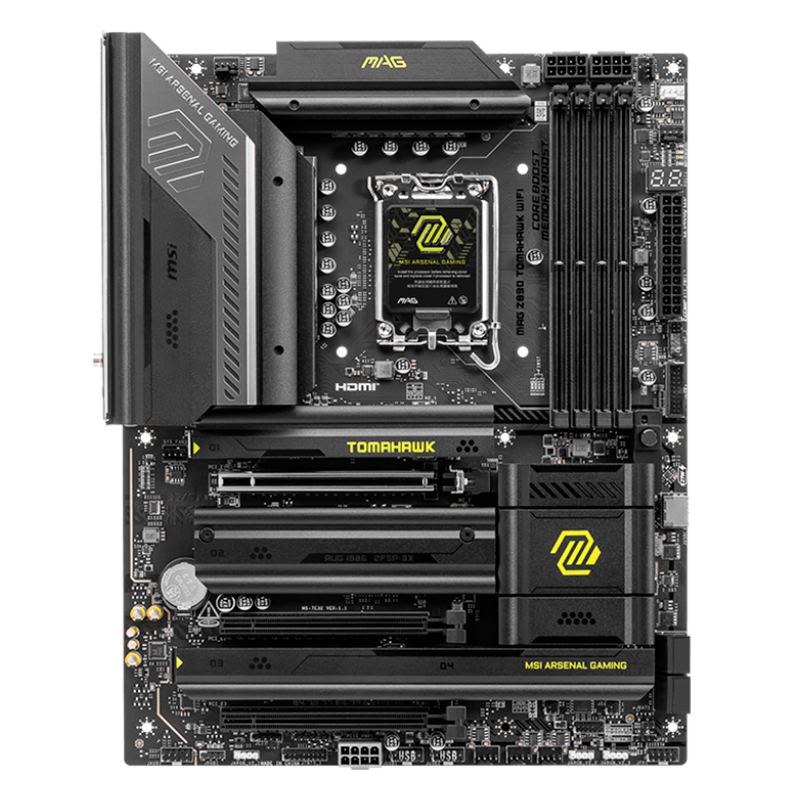

Motherboard MSI MAG Z890 TOMAHAWK WIFI, Chipset Intel Z890, LGA 1851, HDMI,, ATX
Soporta Procesadores de Intel Core Ultra Processors Series 2, 4 x ranuras de memoria DDR5 / maximo de 192GB, Almacenamiento 4 x M.2 x 4 SATA, 7.1-Channel Audio HD, 1 x Realtek 5Gbps LAN (RJ-45), WLAN Intel Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be) + 2.4/5/6GHz + Bluetooth 5.4, Formato ATX.
| MARCA | MSI |
| MODELO | MAG Z890 TOMAHAWK WIFI |
| CHIPSET | INTEL Z890 |
| TIPO DE SOCKET | LGA1851 INTEL |
| INTEL COMPATIBLE | Procesador Core Ultra 9 S1851 - Series 2Procesador Core Ultra 7 S1851 - Series 2Procesador Core Ultra 5 S1851 - Series 2Procesador Core Ultra 3 S1851 - Series 2 |
| COMPATIBLES | Memoria RAM DDR5 8200 MHz PC5-65600Memoria RAM DDR5 7600 MHz PC5-60800Memoria RAM DDR5 7200 MHz PC5-57600Memoria RAM DDR5 6800 MHz PC5-54400Memoria RAM DDR5 6400 MHz PC5-51200Memoria RAM DDR5 6000 MHz PC5-48000Memoria RAM DDR5 5600 MHz PC5-44800Memoria RAM DDR5 5200 MHz PC5-41600Memoria RAM DDR5 4800 MHz PC5-38400 |
| NUMERO DE SOCKETS DIMM | 4 |
| EXPANSION MAXIMA EN GB | 192 |
| TECNOLOGIA | Intel XMPDual Channel |
| TIPO DE RAM | DDR5 |
| VIDEO | REVISAR CARACTERÍSTICAS DEL PROCESADOR |
| TECNOLOGIA | HIGH DEFINITION AUDIO |
| CHIPSET | Realtek ALC1220P Codec |
| CANALES | 7.1 |
| ETHERNET | CHIPSET Intel Killer E5000 |
| VELOCIDAD | 100 Mbps1000 Mbps2500 Mbps5000 Mbps |
| CHIPSET | Intel Killer BE1750x Wi-Fi 7 |
| PROTOCOLOS | 802.11be802.11ax802.11ac802.11n802.11g802.11b802.11a |
| BANDAS DE FRECUENCIA | 6 GHz5 GHz2.4 GHz |
| BLUETOOTH VERSION | 5.4 |
| NUMERO DE PUERTOS | 4 |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s |
| RAID SATA | RAID 10RAID 5RAID 1RAID 0 |
| NUMERO TOTAL DE SLOTS M.2 KEY M | 4 |
| M.2 CONECTADO AL PROCESADOR | 1 PCIe 5.0 x4, tipos 2260/22801 PCIe 4.0 x4, tipos 2260/2280/22110 |
| M.2 CONECTADO AL CHIPSET | 1 PCIe 4.0 x4, tipos 2242/2260/22801 PCIe 4.0 x4 y SATA, tipos 2242/2260/2280 |
| RAID PCIE O NVME | RAID 10RAID 5RAID 1RAID 0 |
| CONECTADO AL PROCESADOR | 1 PCI Express x16 slot, PCIe 5.0 modo x16 |
| CONECTADO AL CHIPSET | 2 PCI Express x16 slot, PCIe 4.0 modo x4 |
| FRONT PANEL AUDIO HEADER | 1 |
| USB 3.2 GEN 2X2 TIPO-C HEADER | 1 |
| USB 3.2 GEN 1 HEADER | 2 |
| USB 2.0 HEADER | 4 |

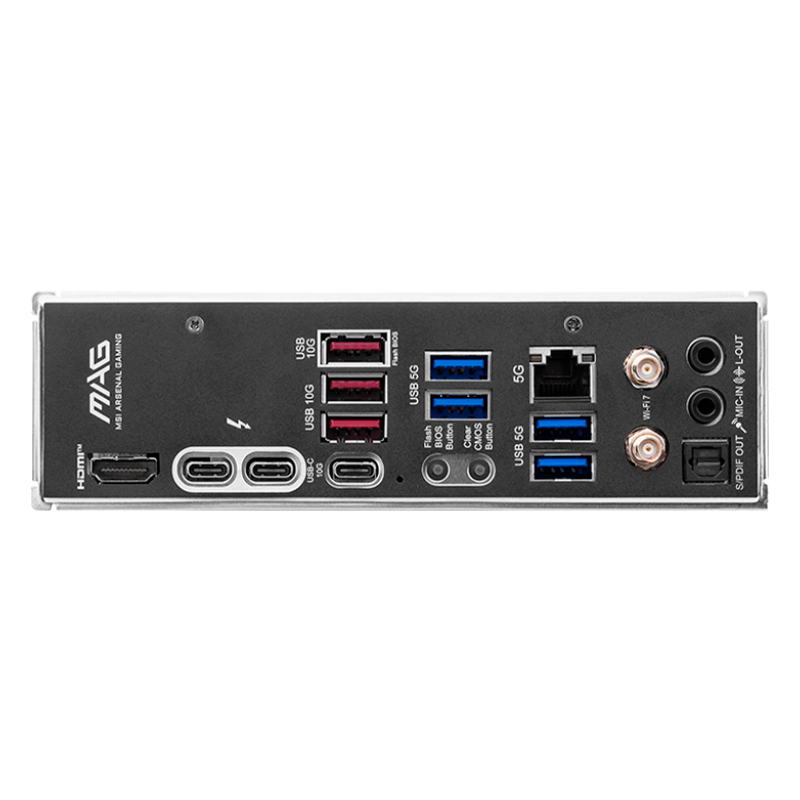

| THUNDERBOLT 4, USB TIPO-C | 2 |
| USB 3.2 GEN 2 TIPO-C | 1 |
| USB 3.2 GEN 2 TIPO-A | 3 |
| USB 3.2 GEN 1 TIPO-A | 4 |
| HDMI | 1 |
| RJ-45 | 1 |
| AUDIO JACKS | 2 |
| OPTICAL S/PDIF OUT | 1 |
| WI-FI / BLUETOOTH ANTENNA | 2 |
| BOTON CLEAR CMOS | 1 |
| FLASH BIOS BUTTON | 1 |
| BIOS | AMI BIOS UEFI |
| FACTOR DE FORMA | ATX |
| DIMENSIONES | 24.38 x 30.48 CM |
| PRESENTACION | CAJA |
| 1 x 24-pin ATX Main Power | 1 |
| 1 x 8-pin ATX 12V power | 2 |
| 1 x 8-pin PCIe Power | 1 |
