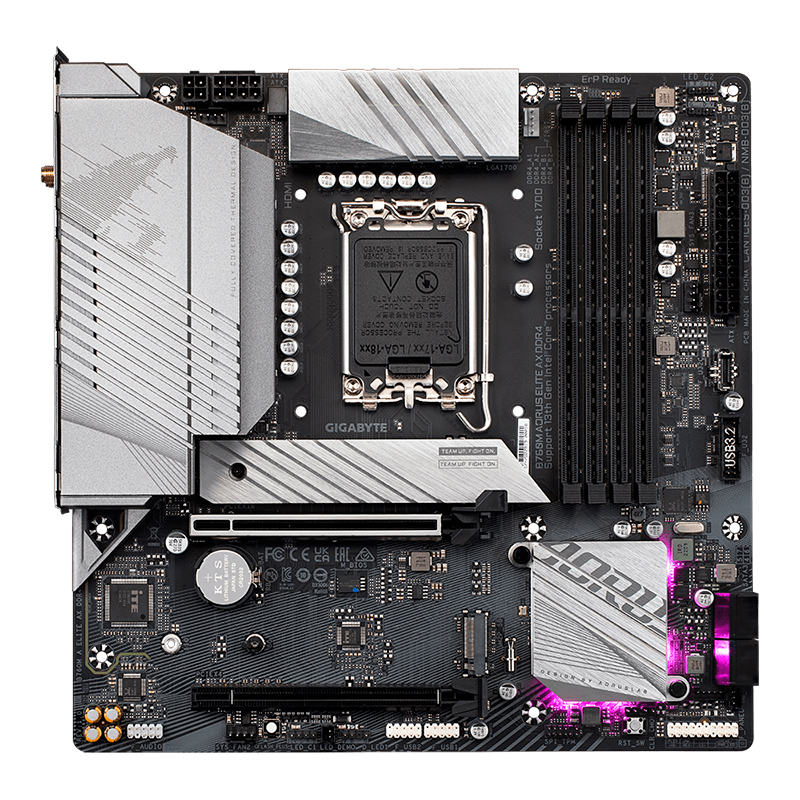

Motherboard Gigabyte B760M AORUS ELITE AX DDR4, Chipset Intel B760, LGA1700, mATX
Soporta Procesadores de 14th, 13th y 12th Generacion Intel Core i9 / i7 / i5 / i3 / Pentium Gold / Celeron, 4 x ranuras de memoria DDR4 / maximo de 128 GB, Almacenamiento 2 x M.2 Key-M slots / 4 x SATA 6Gb/s, Sonido Realtek Audio CODEC / Audio HD, 1 x Realtek 2.5 Gbps Ethernet (RJ-45), WiFi, Bluetooth, Formato mATX.
| MARCA | GIGABYTE |
| MODELO | B760M AORUS ELITE AX DDR4 |
| REVISION | 1.0 |
| CHIPSET | INTEL B760 |
| TIPO DE SOCKET | LGA1700 INTEL |
| INTEL COMPATIBLE | Procesador Core i3 S1700 14XXX - 14va GeneracionProcesador Core i9 S1700 14XXX - 14va GeneracionProcesador Core i7 S1700 14XXX - 14va GeneracionProcesador Core i5 S1700 14XXX - 14va GeneracionProcesador Core i3 S1700 13XXX-Treceava GeneracionProcesador Core i5 S1700 13XXX-Treceava GeneracionProcesador Core i7 S1700 13XXX-Treceava GeneracionProcesador Core i9 S1700 13XXX-Treceava GeneracionProcesador Core i3 S1700 12XXX-Doceava GeneracionProcesador Core i5 S1700 12XXX-Doceava GeneracionProcesador Core i7 S1700 12XXX-Doceava GeneracionProcesador Core i9 S1700 12XXX-Doceava GeneracionProcesador Celeron Dual Core S1700 GXXXX |
| COMPATIBLES | Memoria RAM DDR4 4000 MHz PC4-32000Memoria RAM DDR4 3600 MHz PC4-28800Memoria RAM DDR4 3200 MHz PC4-25600Memoria RAM DDR4 3000 MHz PC4-24000Memoria RAM DDR4 2666 MHz PC4-21300 |
| NUMERO DE SOCKETS DIMM | 4 |
| EXPANSION MAXIMA EN GB | 128 |
| TECNOLOGIA | Intel XMPDual Channel |
| TIPO DE RAM | DDR4 |
| VIDEO | Revisar caracteristicas del Procesador |
| TECNOLOGIA | High Definition (HD) |
| CHIPSET | Realtek Audio Codec |
| CANALES | 7.1 |
| ETHERNET | CHIPSET Realtek 2.5GbE |
| VELOCIDAD | 100 Mbps1000 Mbps2500 Mbps |
| CHIPSET | Intel Wi-Fi 6E AX211 |
| PROTOCOLOS | 802.11ax802.11ac802.11n802.11g802.11b802.11a |
| BANDAS DE FRECUENCIA | 6 GHz5 GHz2.4 GHz |
| BLUETOOTH VERSION | 5.3 |
| NUMERO DE PUERTOS | 4 |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s |
| RAID SATA | RAID 10RAID 5RAID 1RAID 0 |
| NUMERO TOTAL DE SLOTS M.2 KEY M | 2 |
| 1 x PCIe 4.0 x4 tipos | 2280 |
| 1 x PCIe 4.0 x4 tipos | 228022110 |
| PCI Express CPU | PCI Express x16 slot, PCIe 4.0 modo x16 1 |
| PCI Express x16 slot, PCIe 4.0 modo x4 | 1 |
| FRONT PANEL AUDIO HEADER | 1 |
| USB 3.2 GEN 2 TIPO-C HEADER | 1 |
| USB 3.2 GEN 1 HEADER | 2 |
| USB 2.0 / 1.1 HEADER | 4 |
| USB 3.2 GEN 2X2 TIPO-C | 1 |
| USB 3.2 GEN 2 TIPO-A | 1 |
| USB 3.2 GEN 1 TIPO-A | 3 |
| USB 2.0 / 1.1 TIPO-A | 4 |
| HDMI | 1 |
| DISPLAYPORT | 1 |
| RJ-45 | 1 |
| AUDIO JACKS | 2 |
| OPTICAL S/PDIF OUT | 1 |
| WI-FI / BLUETOOTH ANTENNA | 2 |
| BIOS | AMI BIOS UEFI |
| FACTOR DE FORMA | Micro-ATX |
| DIMENSIONES | 24.4 cm x 24.4 cm |
| PRESENTACION | CAJA |
| 1 x 24-pin ATX Main Power | 1 |
| 1 x 8-pin ATX 12V power | 1 |
| 1 x 4-pin ATX 12V power | 1 |
