ESPECIFICACIONES TÉCNICAS
| MARCA | GIGABYTE | ||

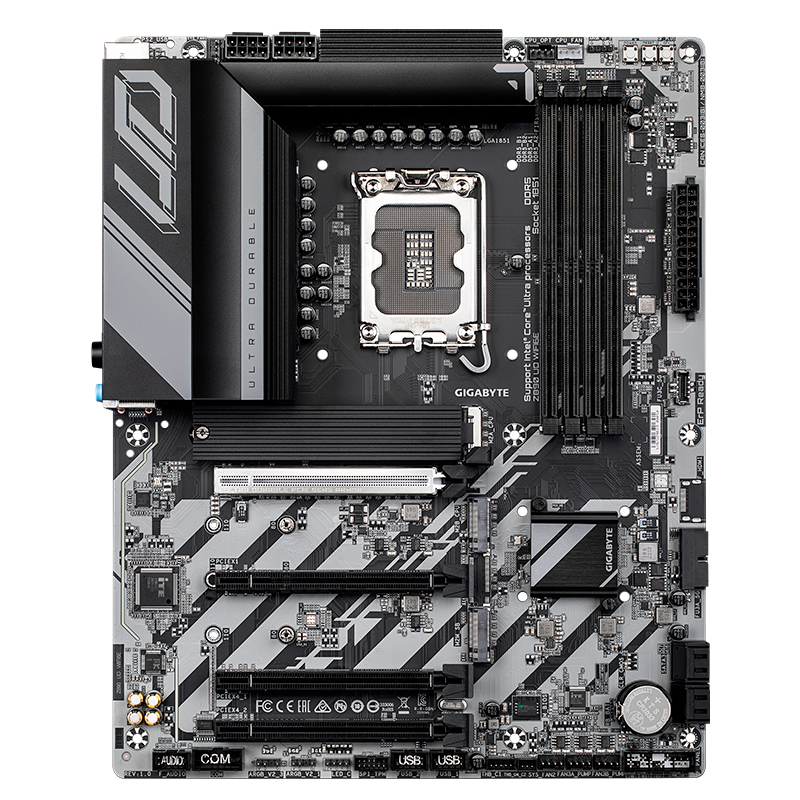

| MODELO | Z890 UD WIFI6E | ||
| CHIPSET | INTEL Z890 | ||
| TIPO DE SOCKET | LGA1851 INTEL | ||
| PROCESADORES | INTEL COMPATIBLE | Procesador Core Ultra 9 S1851 - Series 2Procesador Core Ultra 7 S1851 - Series 2Procesador Core Ultra 5 S1851 - Series 2Procesador Core Ultra 3 S1851 - Series 2 | |
| MEMORIAS RAM | COMPATIBLES | Memoria RAM DDR5 8200 MHz PC5-65600Memoria RAM DDR5 7600 MHz PC5-60800Memoria RAM DDR5 7200 MHz PC5-57600Memoria RAM DDR5 6800 MHz PC5-54400Memoria RAM DDR5 6400 MHz PC5-51200Memoria RAM DDR5 6000 MHz PC5-48000Memoria RAM DDR5 5600 MHz PC5-44800Memoria RAM DDR5 5200 MHz PC5-41600Memoria RAM DDR5 4800 MHz PC5-38400 | |
| NUMERO DE SOCKETS DIMM | 4 | ||
| EXPANSION MAXIMA EN GB | 192 | ||
| TECNOLOGIA | Intel XMPDual Channel | ||
| TIPO DE RAM | DDR5 | ||
| VIDEO | Revisar caracteristicas del video del procesador. | ||
| SONIDO | TECNOLOGIA | High Definition Audio | |
| CHIPSET | Realtek Audio Codec | ||
| CANALES | 7.1 | ||
| VELOCIDAD | 100 Mbps1000 Mbps2500 Mbps | ||
| WIRELESS | CHIPSET | Wi-Fi 6E | |
| PROTOCOLOS | 802.11ax802.11ac802.11n802.11g802.11b802.11a | ||
| BANDAS DE FRECUENCIA | 6 GHz5 GHz2.4 GHz | ||
| BLUETOOTH VERSION | 5.3 | ||
| ALMACENAMIENTO SERIAL ATA | NUMERO DE PUERTOS | 4 | |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s | ||
| RAID SATA | RAID 10RAID 5RAID 1RAID 0 | ||
| ALMACENAMIENTO M.2 | NUMERO TOTAL DE SLOTS M.2 KEY M | 3 | |
| M.2 CPU | 1 x PCIe 5.0 x4 tipos | 228025802211025110 | |
| 1 x PCIe 4.0 x4 tipos | 228025802211025110 | ||
| M.2 CHIPSET | 1 x PCIe 4.0 x4 y SATA tipos | 228025802211025110 | |
| RAID PCIe o NVMe | RAID 5RAID 1RAID 0 | ||
| PCI Express CHIPSET | PCI Express x16 slot, PCIe 4.0 modo x4 | 2 | |
| PCI Express x16 slot, PCIe 4.0 modo x1 | 1 | ||
| PUERTOS INTERNOS | FRONT PANEL AUDIO HEADER | 1 | |
| USB 3.2 GEN 1 HEADER | 2 | ||
| USB 2.0 HEADER | 4 | ||
| USB 3.2 GEN 1 TIPO-C HEADER | 1 | ||

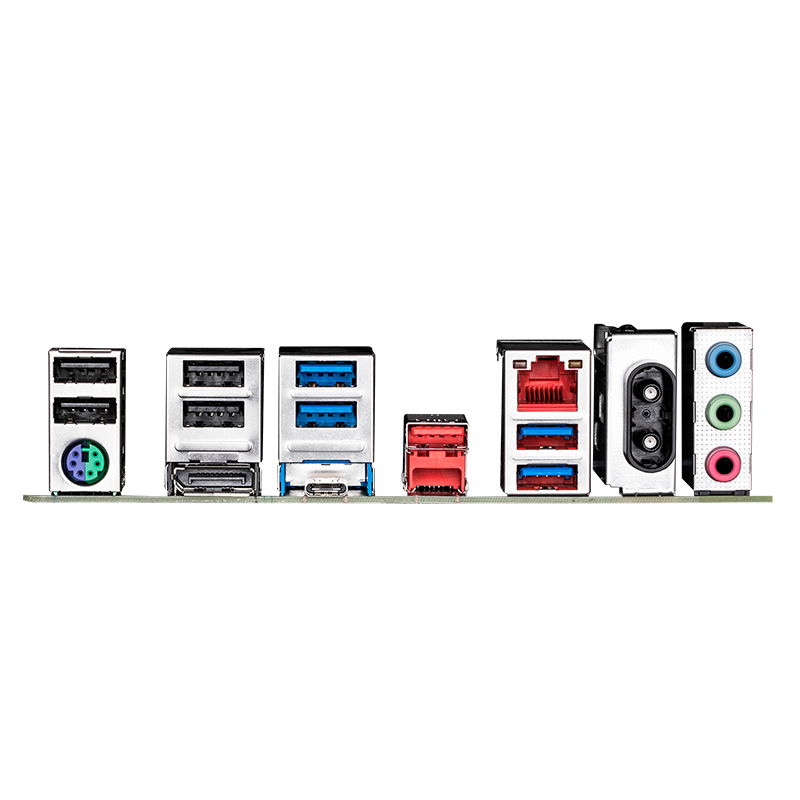

| PUERTOS BACK PANEL | USB 3.2 GEN 2 TIPO-A | 1 | |
| USB 3.2 GEN 1 TIPO-A | 4 | ||
| USB 2.0 / 1.1 TIPO-A | 4 | ||
| DISPLAYPORT | 1 | ||
| RJ-45 | 1 | ||
| AUDIO JACKS | 3 | ||
| WI-FI / BLUETOOTH ANTENNA | 2 | ||
| PS/2 COMBO | 1 | ||
| USB4 Type-C port DisplayPort | 1 | ||
| Nota USB4 Type-C port DisplayPort | Soporte a Display Port varia con modelo de Procesador | ||
| BIOS | AMI BIOS UEFI | ||
| FACTOR DE FORMA Y DIMENSIONES | FACTOR DE FORMA | ATX | |
| DIMENSIONES | 30.5 cm x 24.4 cm | ||
| PRESENTACION | CAJA | ||
| CONECTORES FUENTE POWER | 1 x 24-pin ATX Main Power | 1 | |
| 1 x 8-pin ATX 12V power | 2 | ||
