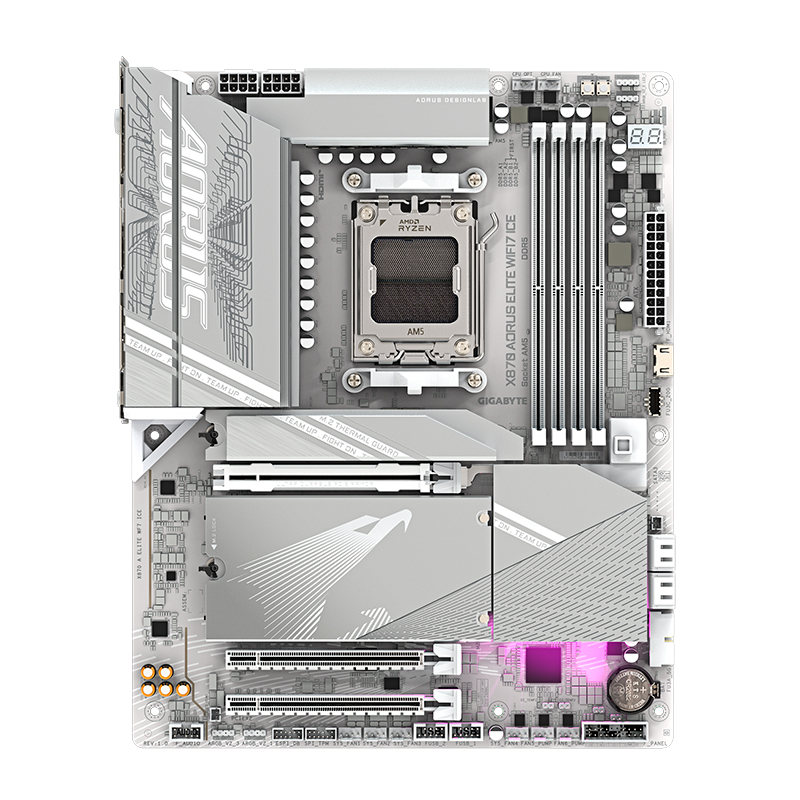

| MARCA | GIGABYTE | ||
| MODELO | X870E AORUS ELITE WIFI7 | ||
| CHIPSET | AMD X870E | ||
| TIPO DE SOCKET | AM5 AMD | ||
| PROCESADORES | AMD COMPATIBLE | Procesador AMD Ryzen 9 SAM5 9XXXProcesador AMD Ryzen 7 SAM5 9XXXProcesador AMD Ryzen 5 SAM5 9XXXProcesador AMD Ryzen 3 SAM5 9XXXProcesador AMD Ryzen 3 SAM5 8XXXProcesador AMD Ryzen 9 SAM5 8XXXProcesador AMD Ryzen 7 SAM5 8XXXProcesador AMD Ryzen 5 SAM5 8XXXProcesador AMD Ryzen 9 SAM5 7XXXProcesador AMD Ryzen 7 SAM5 7XXXProcesador AMD Ryzen 5 SAM5 7XXX | |
| MEMORIAS RAM | COMPATIBLES | Memoria RAM DDR5 8200 MHz PC5-65600Memoria RAM DDR5 7600 MHz PC5-60800Memoria RAM DDR5 7200 MHz PC5-57600Memoria RAM DDR5 6800 MHz PC5-54400Memoria RAM DDR5 6400 MHz PC5-51200Memoria RAM DDR5 6000 MHz PC5-48000Memoria RAM DDR5 5600 MHz PC5-44800Memoria RAM DDR5 5200 MHz PC5-41600Memoria RAM DDR5 4800 MHz PC5-38400 | |
| NUMERO DE SOCKETS DIMM | 4 | ||
| EXPANSION MAXIMA EN GB | 256 | ||
| TECNOLOGIA | Extreme Memory Profile (XMP)AMD EXPODual Channel | ||
| TIPO DE RAM | DDR5 | ||
| VIDEO | Revisar caracteristicas del procesador | ||
| SONIDO | TECNOLOGIA | High Definition (HD) | |
| CHIPSET | Realtek ALC1220 Codec | ||
| CANALES | 7.1 | ||
| VELOCIDAD | 100 Mbps1000 Mbps2500 Mbps | ||
| WIRELESS | CHIPSET | Realtek Wi-Fi 7 RTL8922AE | |
| PROTOCOLOS | 802.11ax802.11ac802.11n802.11g802.11b802.11a | ||
| BANDAS DE FRECUENCIA | 6 GHz5 GHz2.4 GHz | ||
| BLUETOOTH VERSION | 5.4 | ||
| ALMACENAMIENTO SERIAL ATA | NUMERO DE PUERTOS | 4 | |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s | ||
| RAID SATA | RAID 10RAID 1RAID 0 | ||
| ALMACENAMIENTO M.2 | NUMERO TOTAL DE SLOTS M.2 KEY M | 4 | |
| M.2 CPU | 1 x PCIe 5.0 x4 tipos | 228025802211025110 | |
| 2 x PCIe 5.0 x4 tipos | 228022110 | ||
| M.2 CHIPSET | 1 x PCIe 4.0 x4 tipos | 228022110 | |
| RAID PCIe o NVMe | RAID 10RAID 1RAID 0 | ||
| NOTA M.2 CPU | Velocidad varia con modelo del procesador | ||
| PCI Express CHIPSET | PCI Express x16 slot, PCIe 4.0 modo x4 | 1 | |
| PCI Express x16 slot, PCIe 3.0 modo x4 | 1 | ||
| NOTA PCI Express CPU | Velocidad varia con modelo del procesador | ||
| PUERTOS INTERNOS | FRONT PANEL AUDIO HEADER | 1 | |
| USB 3.2 GEN 2X2 TIPO-C HEADER | 1 | ||
| USB 3.2 GEN 1 HEADER | 4 | ||
| USB 2.0 / 1.1 HEADER | 4 | ||
| PUERTOS BACK PANEL | USB 3.2 GEN 2 TIPO-A | 2 | |
| USB 3.2 GEN 1 TIPO-A | 4 | ||
| USB 2.0 TIPO-A | 4 | ||
| HDMI | 1 | ||
| RJ-45 | 1 | ||
| AUDIO JACKS | 2 | ||
| OPTICAL S/PDIF OUT | 1 | ||
| WI-FI / BLUETOOTH ANTENNA | 2 | ||
| Q-FLASH PLUS | 1 | ||
| USB4 Type-C port DisplayPort | 2 | ||
| BIOS | AMI BIOS UEFI | ||
| FACTOR DE FORMA Y DIMENSIONES | FACTOR DE FORMA | ATX | |
| DIMENSIONES | 30.5 cm x 24.4 cm | ||
| PRESENTACION | CAJA | ||
| CONECTORES FUENTE POWER | 1 x 24-pin ATX Main Power | 1 | |
| 1 x 8-pin ATX 12V power | 2 | ||
