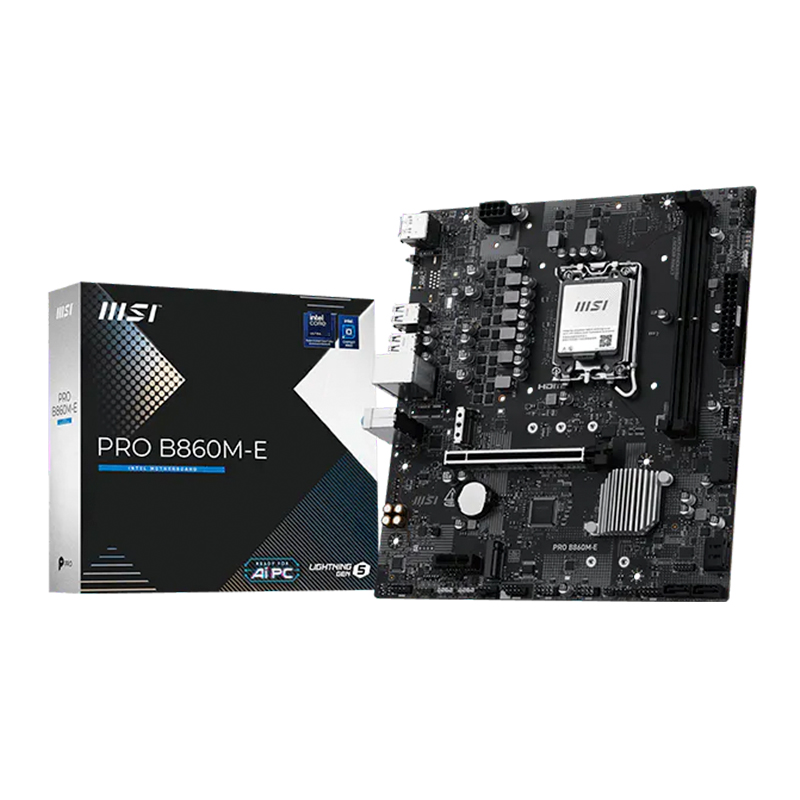

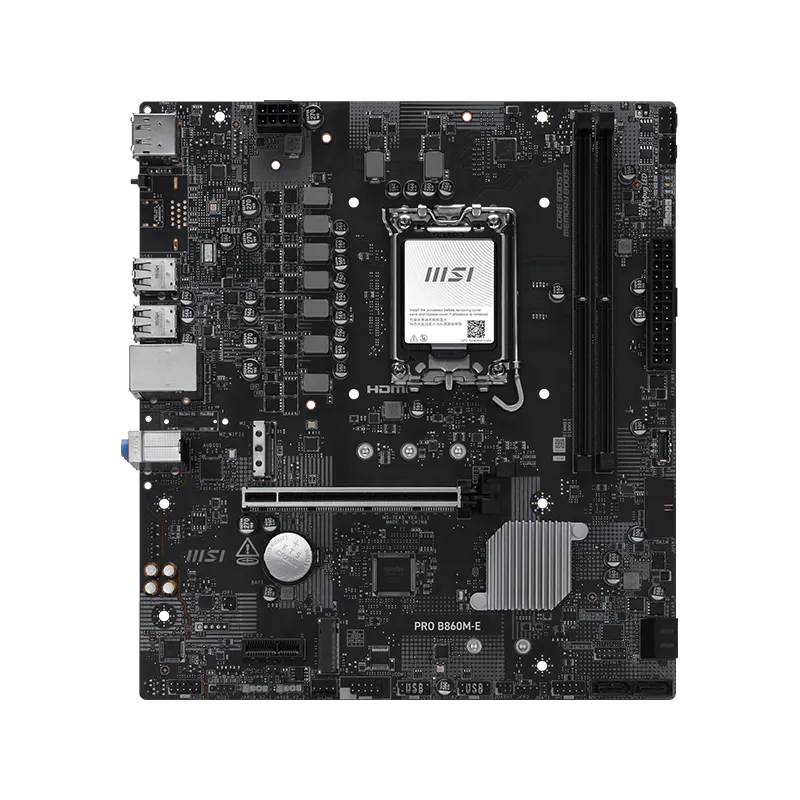

Motherboard MSI PRO B860M-E, Chipset Intel B860, LGA1851, HDMI, DP, mATX
Soporta Procesadores de Intel Core Ultra Processors Series 2 / 2 x ranuras de memoria DDR5 (capacidad maxima de 128 GB) / Almacenamiento 2 x M.2 (PCIe 5.0 x4, PCIe 4.0 x4), 4 x SATA 6Gb/s / Audio Realtek ALC897 Codec, 7.1-Channel Audio HD / 1 x Realtek 5Gbps LAN (RJ-45) / Formato mATX.
| MARCA | MSI |
| MODELO | PRO B860M-E |
| CHIPSET | INTEL B860 |
| TIPO DE SOCKET | LGA1851 INTEL |
| INTEL COMPATIBLE | Procesador Core Ultra 9 S1851 - Series 2Procesador Core Ultra 7 S1851 - Series 2Procesador Core Ultra 5 S1851 - Series 2Procesador Core Ultra 3 S1851 - Series 2 |
| COMPATIBLES | Memoria RAM DDR5 8200 MHz PC5-65600Memoria RAM DDR5 7600 MHz PC5-60800Memoria RAM DDR5 7200 MHz PC5-57600Memoria RAM DDR5 6800 MHz PC5-54400Memoria RAM DDR5 6400 MHz PC5-51200Memoria RAM DDR5 6000 MHz PC5-48000Memoria RAM DDR5 5600 MHz PC5-44800Memoria RAM DDR5 5200 MHz PC5-41600Memoria RAM DDR5 4800 MHz PC5-38400 |
| NUMERO DE SOCKETS DIMM | 2 |
| EXPANSION MAXIMA EN GB | 128 |
| TECNOLOGIA | Intel XMPDual Channel |
| TIPO DE RAM | DDR5 |
| VIDEO | Revisar caracteristicas del procesador |
| TECNOLOGIA | High Definition Audio |
| CHIPSET | Realtek ALC897 Codec |
| CANALES | 7.1 |
| ETHERNET | CHIPSET Realtek 8126 |
| VELOCIDAD | 100 Mbps1000 Mbps2500 Mbps5000 Mbps |
| NUMERO DE PUERTOS | 4 |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s |
| NUMERO TOTAL DE SLOTS M.2 KEY M | 2 |
| 1 x PCIe 5.0 x4 tipos | 224222602280 |
| 1 x PCIe 4.0 x4 tipos | 22602280 |
| PCI Express CPU | PCI Express x16 slot, PCIe 5.0 modo x16 1 |
| PCI Express x16 slot, PCIe 4.0 modo x1 | 1 |
| FRONT PANEL AUDIO HEADER | 1 |
| USB 3.2 GEN 2 TIPO-C HEADER | 1 |
| USB 3.2 GEN 1 HEADER | 2 |
| USB 2.0 HEADER | 4 |
| TPM 2.0 HEADER | 1 |

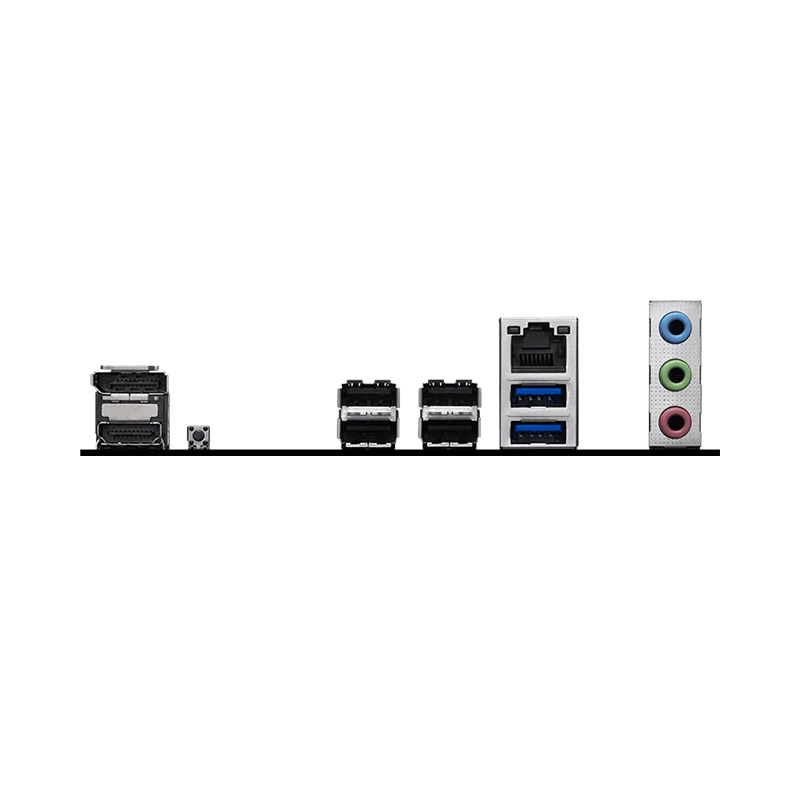

| USB 3.2 GEN 1 TIPO-A | 2 |
| USB 2.0 TIPO-A | 4 |
| HDMI | 1 |
| DISPLAYPORT | 1 |
| RJ-45 | 1 |
| AUDIO JACKS | 3 |
| BOTON CLEAR CMOS | 1 |
| FACTOR DE FORMA | Micro-ATX |
| DIMENSIONES | 220 mm x 243.84 mm |
| PRESENTACION | CAJA |
| 1 x 24-pin ATX Main Power | 1 |
| 1 x 8-pin ATX 12V power | 1 |
