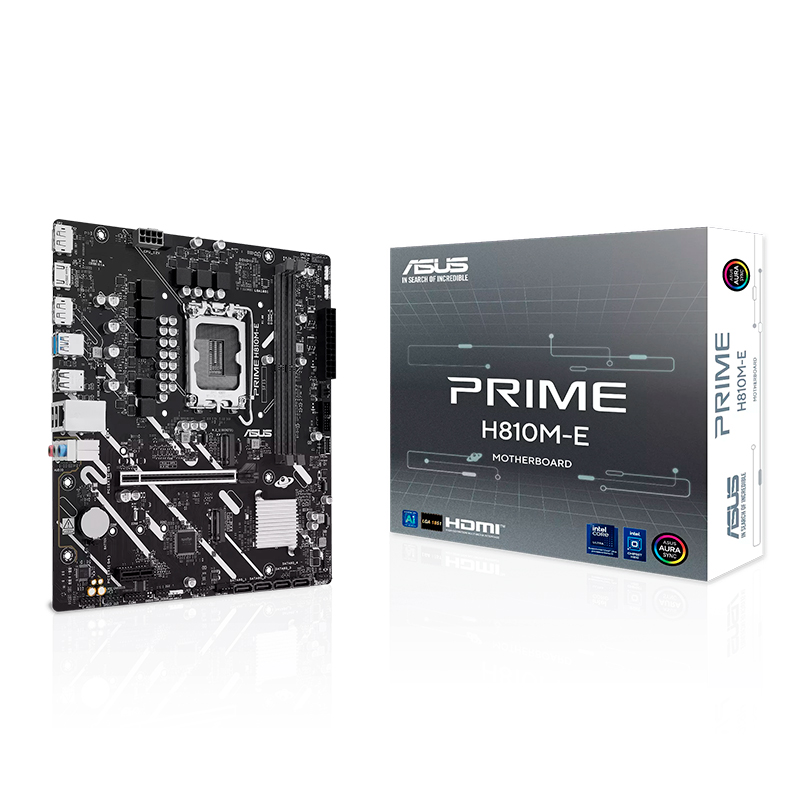

Soporta Procesadores de Intel Core Ultra Processors Series 2, 2 x ranuras de memoria DDR5 / maximo de 128 GB, Almacenamiento 2 x M.2 PCIe / 4 x SATA 6Gb/s, 7.1-Channel Audio HD, 1 x Realtek 1.0Gbps RJ-45, Formato mATX.
| MARCA | ASUS | ||
| MODELO | PRIME H810M-E | ||
| CHIPSET | INTEL H810 | ||
| TIPO DE SOCKET | LGA1851 INTEL | ||
| PROCESADORES | INTEL COMPATIBLE | Procesador Core Ultra 9 S1851 - Series 2Procesador Core Ultra 7 S1851 - Series 2Procesador Core Ultra 5 S1851 - Series 2Procesador Core Ultra 3 S1851 - Series 2 | |
| MEMORIAS RAM | COMPATIBLES | Memoria RAM DDR5 8200 MHz PC5-65600Memoria RAM DDR5 7600 MHz PC5-60800Memoria RAM DDR5 7200 MHz PC5-57600Memoria RAM DDR5 6800 MHz PC5-54400Memoria RAM DDR5 6400 MHz PC5-51200Memoria RAM DDR5 6000 MHz PC5-48000Memoria RAM DDR5 5600 MHz PC5-44800Memoria RAM DDR5 5200 MHz PC5-41600Memoria RAM DDR5 4800 MHz PC5-38400 | |
| NUMERO DE SOCKETS DIMM | 2 | ||
| EXPANSION MAXIMA EN GB | 128 | ||
| TECNOLOGIA | Intel XMPDual Channel | ||
| TIPO DE RAM | DDR5 | ||
| VIDEO | Revisar caracteristicas del video del procesador. | ||
| SONIDO | TECNOLOGIA | Surround Sound High Definition Audio | |
| CHIPSET | Realtek Audio Codec | ||
| CANALES | 7.1 | ||
| VELOCIDAD | 100 Mbps1000 Mbps | ||
| ALMACENAMIENTO SERIAL ATA | NUMERO DE PUERTOS | 4 | |
| VELOCIDAD DE TRANSFERENCIA | 6 Gbit/s | ||
| ALMACENAMIENTO M.2 | NUMERO TOTAL DE SLOTS M.2 KEY M | 2 | |
| M.2 CHIPSET | 1 x PCIe 4.0 x4 tipos | 2280 | |
| 1 x PCIe 4.0 x2 tipos | 224222602280 | ||
| PCI Express CHIPSET | PCI Express x1 slot, PCIe 4.0 | 1 | |
| PUERTOS INTERNOS | FRONT PANEL AUDIO HEADER | 1 | |
| USB 3.2 GEN 1 HEADER | 2 | ||
| USB 2.0 HEADER | 2 | ||
| USB 3.2 GEN 1 TIPO-C HEADER | 1 | ||

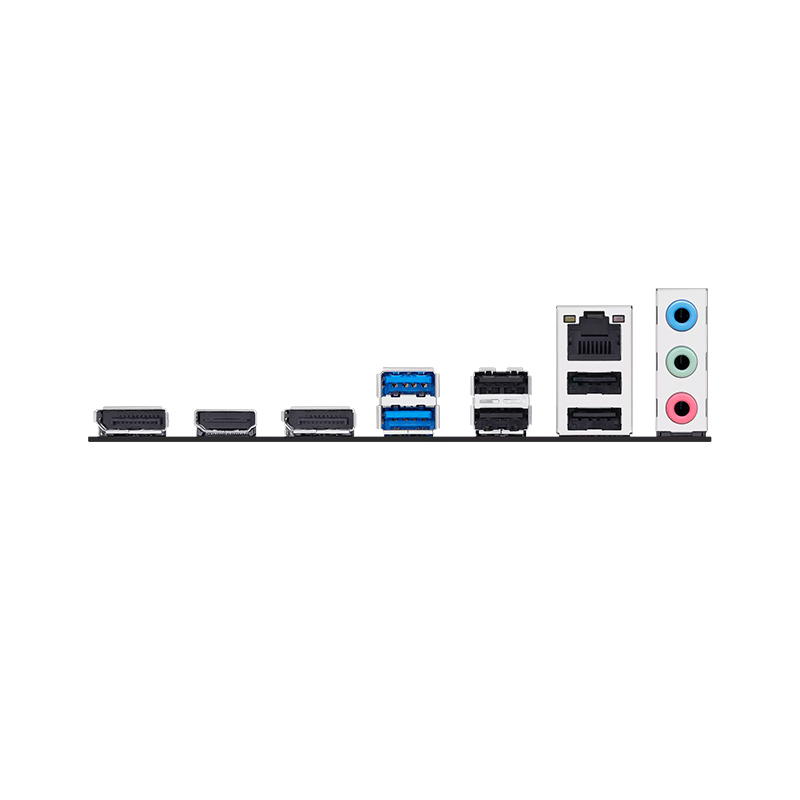

| PUERTOS BACK PANEL | USB 3.2 GEN 2 TIPO-A | 2 | |
| USB 2.0 TIPO-A | 4 | ||
| HDMI | 1 | ||
| DISPLAYPORT | 2 | ||
| RJ-45 | 1 | ||
| AUDIO JACKS | 3 | ||
| BIOS | AMI BIOS UEFI | ||
| FACTOR DE FORMA Y DIMENSIONES | FACTOR DE FORMA | Micro-ATX | |
| DIMENSIONES | 24.4 cm x 22.2 cm | ||
| PRESENTACION | CAJA | ||
| CONECTORES FUENTE POWER | 1 x 24-pin ATX Main Power | 1 | |
| 1 x 8-pin ATX 12V power | 1 | ||
